The set includes SQUEALER-GSM controller, MAX, OILER and SLUDO probe. The set is build on the basis of a modern microprocessor devices for continuous monitoring the status of selected probes. The basic parameters of the controller is 3 inputs + 1 tamper input, 3 relay output, LEDs indicating normal state, failure status and alarm status, buzzer generating an alarm signal, alarm output, relay output, activated at the time of alarm.
SQUEALER-GSM
– 3 input (overflow, grease, fat layer thickness or oil level, sludge level)
– 3 outputs (potential-free relays)
– 1 additional input for monitoring the tank hatch
– GSM (SMS, system status on demand, battery status notification)
– 230V power supply, emergency power supply (battery)
– Hermetic housing used outdoor
– Dipswitch (programming using dipswitches)
– Optical and acoustic signals of troubles and alarms on the front panel
– Sensors diagnostic (opening / short circuit)
MAX
(overflow probe, with 5m cable, 4-20mA, ATEX, 4-20mA)
Oil level measurement; measurement of petroleum substances; fat layer thickness measurement; conductivity technology; ATEX certified. Output signal 4-20mA.
OILER
(oil, fat, petroleum probe, with 5m cable, ATEX, 4-20mA)
Oil level measurement; measurement of petroleum substances; fat layer thickness measurement; conductivity technology; ATEX certified. Output signal 4-20mA.
SLUDO
(sludge probe, with 5m cable, ATEX, 4-20mA)
Detection of the sediment layer; ultrasonic technology; impulse measurement; non-corrosive material; work in full immersion of liquid; ATEX certified. Output signal 4-20mA.
Front panel description.
– LED green colour – probe is OK
– LED green colour blinks – FAILURE
– LED red colour – ALARM
– Short press of the round button – cancel acoustic alarm signal.
– Long press of the OK button – device test (LED, BUZER and RELAY). Test possible only in normal state (without alarm).
Technical data
– Power: 230V AC
– Max. fuse: 1.25 A
– Power Consumption (nominal): 2.2 VA
– Output: NO/NC potential-free relays, 2A/120VAC or 2A/24VDC
– Ambient temperature: -40 to + 60 ° C
– Mechanical strength: IK 07
– Housing dimensions(without glands)(HxWxD): 187 x 122 x 90 mm
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
SET-111 GSM (3 inputs, 230V, GSM)
Dowiedz się więcej
The SET-111 is used for measure the maximal level, oil, grease, petroleum level and sludge level in oil, fat, grease, petroleum substances separators. It has a built-in GSM module that allows you to send SMS text information.

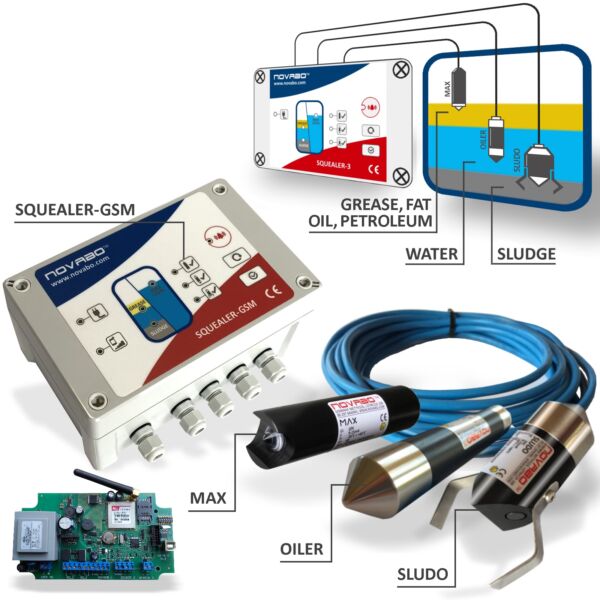

1 x SQUEALER-GSM (controller)
1 x MAX (maximal level probe for water, oil, fat, grease, petroleum substances)
1 x OILER (fat, grease, oil, petroleum substances probe)
1 x SLUDO (sludge probe)
The set includes SQUEALER-GSM controller, MAX, OILER and SLUDO probe. The set is build on the basis of a modern microprocessor devices for continuous monitoring the status of selected probes. The basic parameters of the controller is 3 inputs + 1 tamper input, 3 relay output, LEDs indicating normal state, failure status and alarm status, buzzer generating an alarm signal, alarm output, relay output, activated at the time of alarm.
SQUEALER-GSM
– 3 input (overflow, grease, fat layer thickness or oil level, sludge level)
– 3 outputs (potential-free relays)
– 1 additional input for monitoring the tank hatch
– GSM (SMS, system status on demand, battery status notification)
– 230V power supply, emergency power supply (battery)
– Hermetic housing used outdoor
– Dipswitch (programming using dipswitches)
– Optical and acoustic signals of troubles and alarms on the front panel
– Sensors diagnostic (opening / short circuit)
MAX
(overflow probe, with 5m cable, 4-20mA, ATEX, 4-20mA)
Oil level measurement; measurement of petroleum substances; fat layer thickness measurement; conductivity technology; ATEX certified. Output signal 4-20mA.
OILER
(oil, fat, petroleum probe, with 5m cable, ATEX, 4-20mA)
Oil level measurement; measurement of petroleum substances; fat layer thickness measurement; conductivity technology; ATEX certified. Output signal 4-20mA.
SLUDO
(sludge probe, with 5m cable, ATEX, 4-20mA)
Detection of the sediment layer; ultrasonic technology; impulse measurement; non-corrosive material; work in full immersion of liquid; ATEX certified. Output signal 4-20mA.
Front panel description.
– LED green colour – probe is OK
– LED green colour blinks – FAILURE
– LED red colour – ALARM
– Short press of the round button – cancel acoustic alarm signal.
– Long press of the OK button – device test (LED, BUZER and RELAY). Test possible only in normal state (without alarm).
Technical data
– Power: 230V AC
– Max. fuse: 1.25 A
– Power Consumption (nominal): 2.2 VA
– Output: NO/NC potential-free relays, 2A/120VAC or 2A/24VDC
– Ambient temperature: -40 to + 60 ° C
– Mechanical strength: IK 07
– Housing dimensions(without glands)(HxWxD): 187 x 122 x 90 mm
There is £4.99 charge for delivery under £50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.
In stock
- Free shipping on all orders above 50,00
- No hassle returns, 30 days return
- Next day delivery within your country
