Programming – hold the button for 4 seconds.

1. Select the type of tank by briefly pressing:
   0 – result in cm (factory setting)
   1 – cube, e.g. single or accumulator tank
   2 – lying cylinder, e.g. underground tank in the garden
   3 – ball
   A long press saves the selection and goes to the next step.

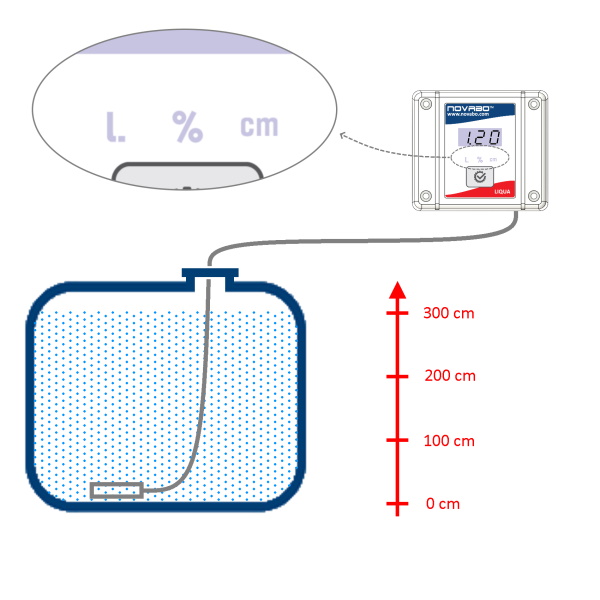

2. Selection of the height of the tank in cm (not for „ball” type).
   The three digit display „000” will appear and the LED „cm” will be lit.
   A short press increases the value of the flashing position.
   A long press saves the value and moves to the next step.
   Example: for a value of 250cm: 250 #> 250 #> 250 #
3. Volume selection in liters (for accumulator tanks, use the total volume of all tanks).

A three-digit display with a dot „0.00” appears and the LED [l.] lights up.
A short press increases the value of the flashing position.
A long press saves the value and moves to the next position.

Example: for a value  250cm: 250# > 250# > 250#
Example: for a value 1250cm: 125# > 125# > 125#

Then we move on to programming the comma thousandths (the dot -.- – is blinking).
A short press moves the comma or deactivates it.
Confirm your selection by holding and exit, as in the example below.
Example: for the value 250: 2 5 0 # (comma disabled)
Example: for a value of 1250: 1.2 5 # (the first LED is on)

4. End of programming. The first measurement is performed.

ATTENTION! If you accidentally start the programming procedure by pressing the button for too long, leave the device intact for 5 seconds. The device will automatically return to normal.

Meaning of additional messages:
Err1 – permissible liquid height exceeded
Bat – 9V 6F22 battery low

Instructions for safe use
The device should be used in accordance with its intended use. Please refer to the device manual before installing. Its technical condition should be checked.

Contents of the package
controller, hose with a weight, 9V battery, screw with a dowel, double-sided tape, manual.

Technical data

Additional accessories

	COVER-LIQUA Visor for the LIQUA indicator – made of plastic, protecting the LIQUA indicator against precipitation.
	PIPE-LIQUA-10 Length 10[m] – hose for the LIQUA meter, made of polyethylene, increasing the distance between the LIQUA indicator and the tank by 10m.
	PIPE-LIQUA-20 Length 20[m] – hose for the LIQUA meter, made of polyethylene, increasing the distance between the LIQUA indicator and the tank by 20m.
	PIPE-LIQUA-20EX Length 20 [m] – hard, polyamide hose for the LIQUA meter, in Ex version, used in explosion hazard zones, in accordance with the ATEX directive, increasing the distance between the LIQUA indicator and the tank by 20 m.
