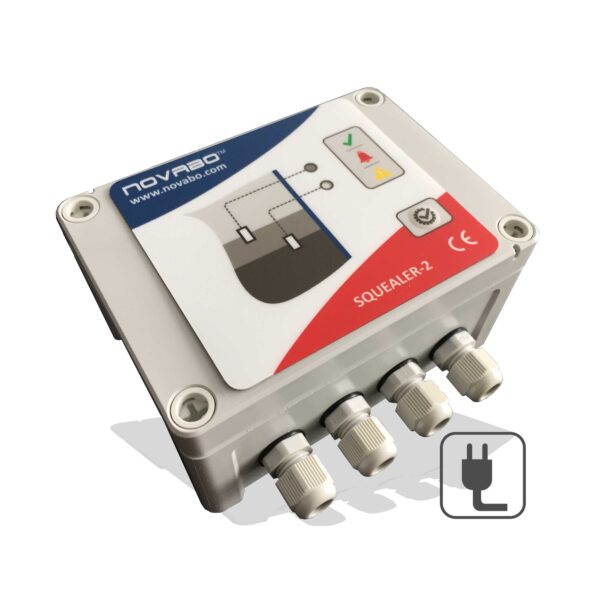

SQUEALER-2 (2 inputs, 2 outputs, 230V)

The SQUEALER controller is a modern, microprocessor-based device for continuous monitoring of one of the selected probes (MAX, OILER, SLUDO). The basic hardware parameters of the controller are 2 inputs, 1 relay output, LEDs indicating normal status, failures and alarm status, BUZER generating a sound signal informing about an alarm, relay output, activated at the moment of alarm.

Front panel description:

– LED lights green – probe is OK
– LED lights red – GENERAL ALARM
– LED blinks green – ACCIDENT
– Short press of a button – reset the alarm buzzer.
– Long press of a button – Long press – test LED optical signaling, acoustic and relay outputs. Test possible only in normal state (without alarm).

Technical data

[tx_row]
[tx_column size=”1/2″]

– Power: 230V AC
– Max. fuse: 1.25 A
– Power Consumption (nominal): 2.2 VA
– Output: NO/NC potential-free relays, 3A/250VAC or 5A/28VDC
– Ambient temperature: -40 to + 60 ° C
– Mechanical strength: IK 07
– Housing dimensions (without glands)(HxWxD): 187 x 122 x 90 mm

[/tx_column]
[tx_column size=”1/2″]

Cable glands:
– 5 x M12, cable dimensions Ø 4,0-6.0 mm
(connecting probes, power supply, relay outputs)

[/tx_column]
[/tx_row]
