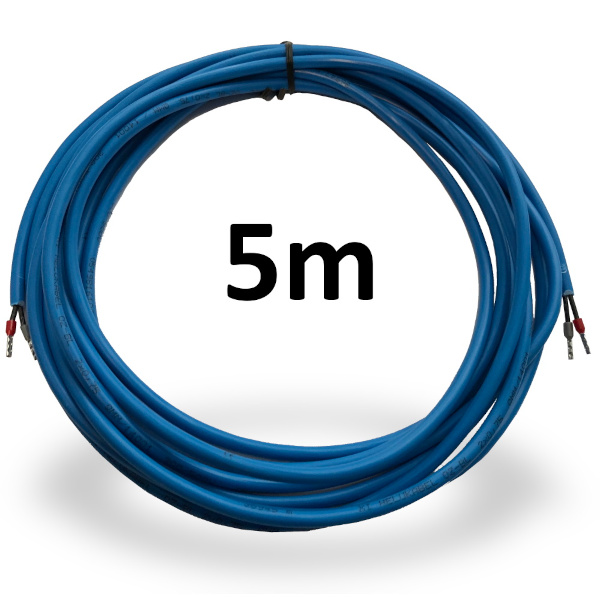

Cable section for extending MAX, OILER, SLUDO probes.
Technical data:
– Wire material: copper
– Number of wires: 2
– Core section: 0.75 mm²
– Outer diameter: 5.2 mm
– Temperature range:
* flexing – 5°C to + 80°C
* fixed installation –40°C to + 80°C
– Nominal voltage: 300/500 V
– Test voltage: 3000V
– Breakdown voltage: min. 6000 V.
– Insulation resistance: min. 20 MOhm x km
– Inductance: approx. 0.68 mH / km (for type CY)
– Core section: 0.75 mm²
– Insulation resistance: min. 20 MOhm x km
– Inductance: approx. 0.68 mH / km (for type CY)
– Length: 5 m
– Color: blue
